3SMH8NF

Part Number: 3SMH8NF Category:
Print

Product information

Frequency (GHz) Min: 9.3 Max: 9.5
Loss Max (dB)

0.35

VSWR (dB)

1.25

Isolation Min (dB)

20

Temp Min (°C)

-55

Temp Max (°C)

100

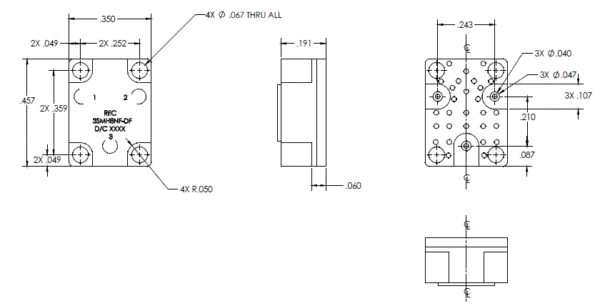

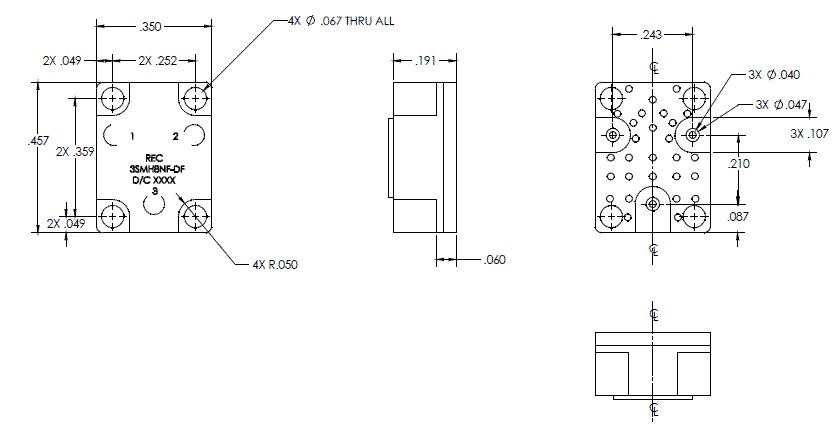

Dimensions 0.35 × 0.191 × 0.457 in
