Designed for Deep Space missions requiring frequency and channel coverage over the entire K Band, Renaissance has designed a new isolator that has ~ 0.5 dB over the entire K-band. The unit is designed to handle flight environmental conditions and complies with space material criteria.

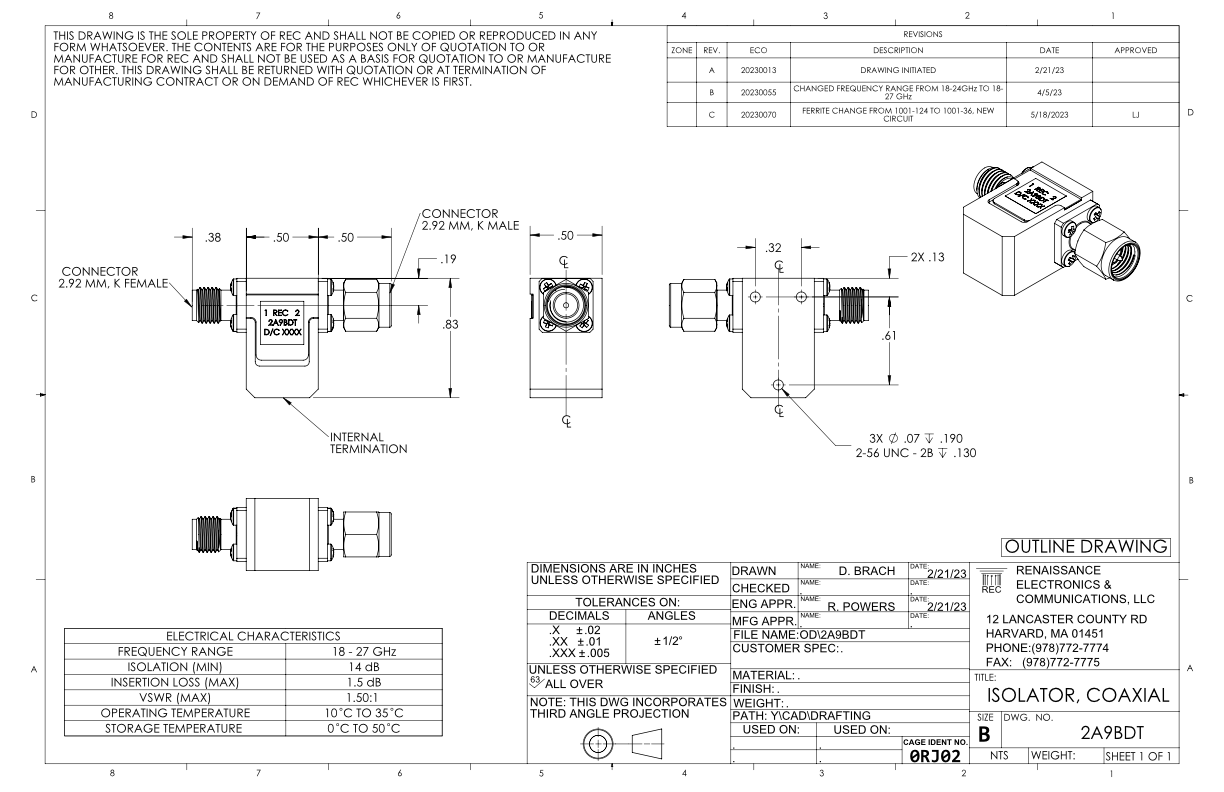

Datasheet: View File
Print
Product information
| Frequency (GHz) | Min: 18 Max: 27 |
|---|---|
| Loss Max (dB) | 1.0 |
| VSWR (dB) | 1.50:1 |
| Isolation Min (dB) | 18 |
| Temp Min (°C) | 0 |
| Temp Max (°C) | 55 |
| Dimensions | .50 × .83 × .32 in |
