Surface Mount High Power Circulator
Showing all 14 results
Category
Part Number
Size
Frequency (GHz)
Drawing
-

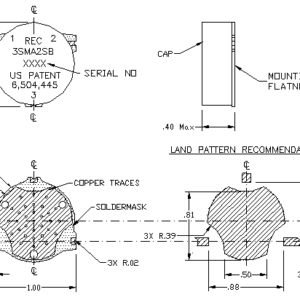

3SMA2SB
Read moreCategory: Surface Mount High Power Circulator
Size: 0.457 × 0.35 × 0.191 in
Min: 0.806
Max: 0.87
-
3SMA2SBL
Read moreCategory: Surface Mount High Power Circulator
Size: 1 × 1 × 0.4 in
Min: 0.806
Max: 0.94
View Drawing
-

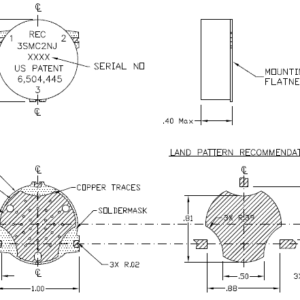

3SMC2NJ
Read moreCategory: Surface Mount High Power Circulator
Size: 0.88 × 0.81 × 0.4 in
Min: 0.88
Max: 0.915
View Drawing
-

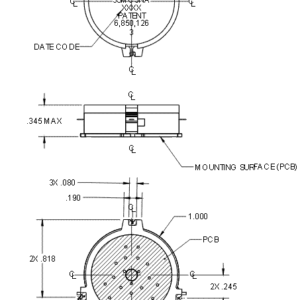

3SMC3NA
Read moreCategory: Surface Mount High Power Circulator
Size: 0.88 × 0.81 × 0.4 in
Min: 1.2
Max: 1.4
View Drawing
-

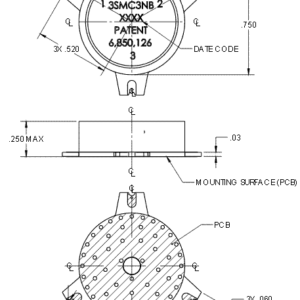

3SMC3NB
Read moreCategory: Surface Mount High Power Circulator
Size: 0.75 × 0.25 in
Min: 2.7
Max: 3.7
View Drawing
-

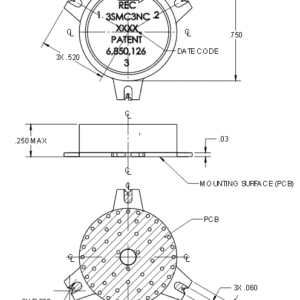

3SMC3NC
Read moreCategory: Surface Mount High Power Circulator
Size: 0.75 × 0.25 in
Min: 2.9
Max: 3.4
View Drawing
-
3SMC4NC
Read moreCategory: Surface Mount High Power Circulator
Size: 1.03 × 1.14 × 0.32 in
Min: 1.93
Max: 1.99
View Drawing
-

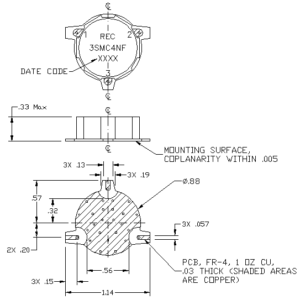

3SMC4NF
Read moreCategory: Surface Mount High Power Circulator
Size: 1.14 × 1.14 × 0.33 in
Min: 2.1
Max: 2.2
View Drawing
-

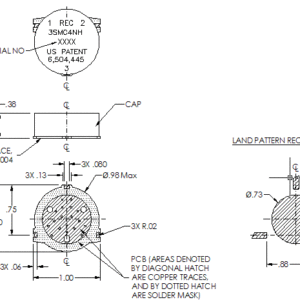

3SMC4NH
Read moreCategory: Surface Mount High Power Circulator
Size: 1.14 × 1.14 × 0.33 in
Min: 1.93
Max: 1.99
View Drawing
-

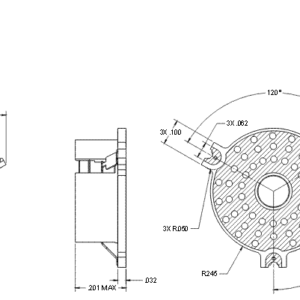

3SMH5NA
Read moreCategory: Surface Mount High Power Circulator
Size: 0.75 × 0.25 in
Min: 3.45
Max: 3.65
View Drawing
-

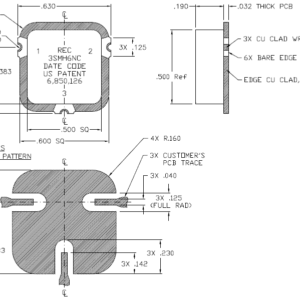

3SMH6NC
Read moreCategory: Surface Mount High Power Circulator
Size: 0.75 × 0.25 in
Min: 4.39
Max: 5.02
View Drawing
-

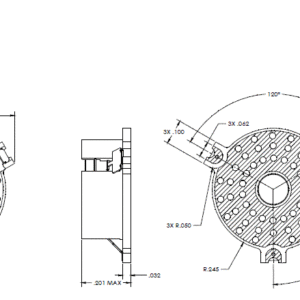

3SMH6NG
Read moreCategory: Surface Mount High Power Circulator
Size: 0.75 × 0.25 in
Min: 4.2
Max: 4.4
View Drawing
-

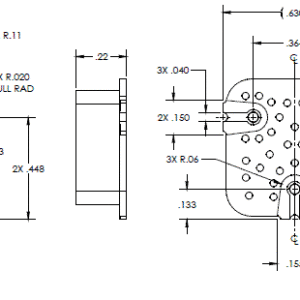

3SMH8NDL
Read moreCategory: Surface Mount High Power Circulator
Size: 0.63 × 0.22 × 0.615 in
Min: 9.3
Max: 9.4
View Drawing
-

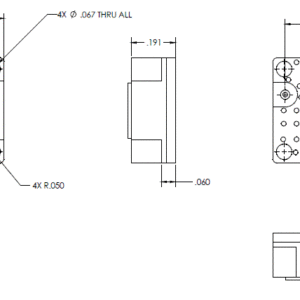

3SMH8NF
Read moreCategory: Surface Mount High Power Circulator
Size: 0.35 × 0.191 × 0.457 in
Min: 9.3
Max: 9.5
View Drawing
