3SMH8NDL

Part Number: 3SMH8NDL Category:
Print

Product information

Freq Min (GHz)

9.30

Freq Max (GHz)

9.40

Loss Max (dB)

0.6

VSWR (dB)

1.25

Isolation Min (dB)

20

Temp Min (°C)

-55

Temp Max (°C)

88

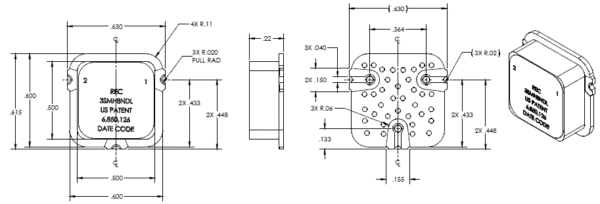

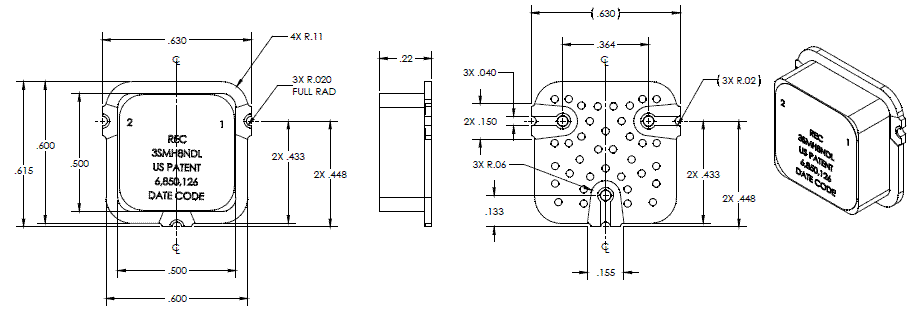

Dimensions 0.63 × 0.22 × 0.615 in
