2SMH9NA-ROHS

Part Number: 2SMH9NA-ROHS Category:
Print

Product information

Freq Min (GHz)

13.75

Freq Max (GHz)

14.50

Loss Max (dB)

0.4

VSWR (dB)

1.25

Isolation Min (dB)

20

Temp Min (°C)

-25

Temp Max (°C)

65

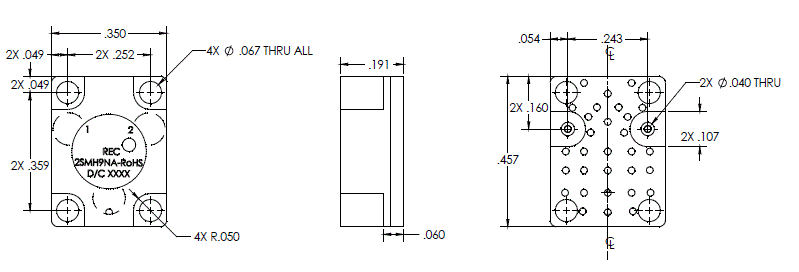

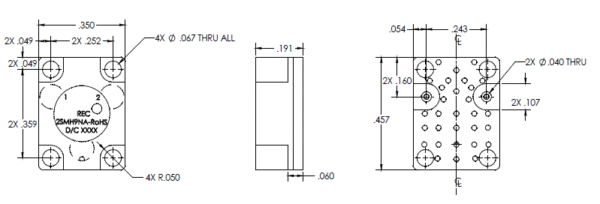

Dimensions 0.457 × 0.35 × 0.191 in
