2SMH9NC-ROHS

Part Number: 2SMH9NC-ROHS Category:
Print

Product information

Freq Min (GHz)

14.60

Freq Max (GHz)

15.30

Loss Max (dB)

0.5

VSWR (dB)

1.25

Isolation Min (dB)

20

Temp Min (°C)

-40

Temp Max (°C)

85

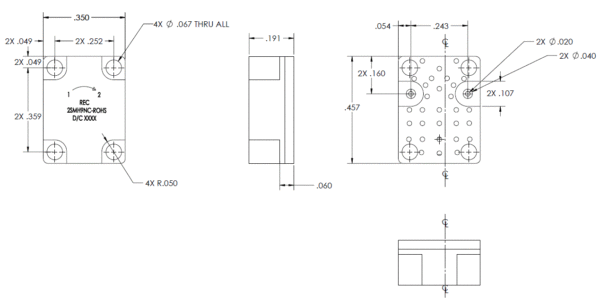

Dimensions 0.457 × 0.35 × 0.191 in
