Designed for VHF Marine Radios, Renaissance latest high power coaxial circulator covers 40% of operational bandwidth with low loss and high isolation to provide high fidelity to the overall system.
Datasheet: View File
Print
Product information
| Frequency (GHz) | Min: 0.2 Max: 0.3 |
|---|---|
| Loss Max (dB) | 0.5 |
| VSWR (dB) | 1.40:1 |
| Isolation Min (dB) | 14 |
| Temp Min (°C) | -25 |
| Temp Max (°C) | 60 |

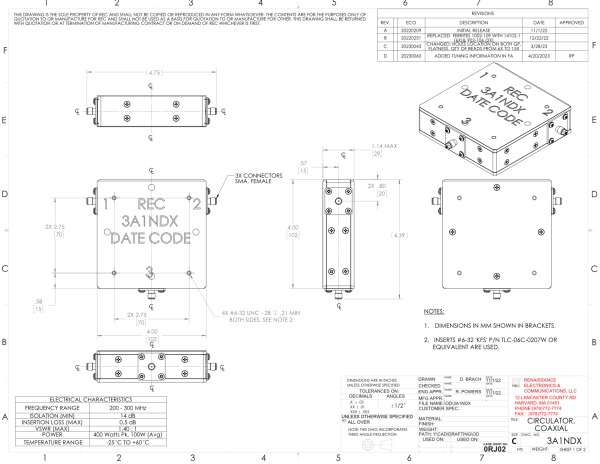

| Dimensions | 4 × 4 × 1.14 in |
