For aeronautical radionavigation services (ARNS) covering DME, TACAN, SSR, IFF, JTIDS/MIDS applications Renaissance has designed a high peak and average handling drop-in circulator that covers 960 – 1215 MHz with low loss and is highly temperature stable.

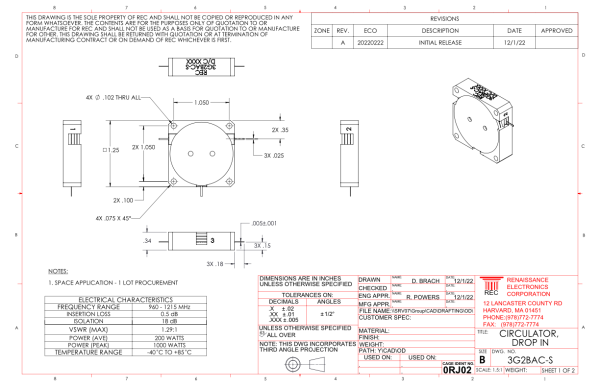

Datasheet: View File
Print
Product information
| Frequency (GHz) | Min: 0.96 Max: 1.215 |
|---|---|
| Loss Max (dB) | 0.5 |
| VSWR (dB) | 1.29:1 |
| Temp Min (°C) | -40 |
| Temp Max (°C) | 85 |
| Dimensions | 1.25 × 1.25 × .34 in |
