Designed for Military Ground Based Radars, this circulator has two unique input pin ports for better matching to the PCB while the third port is a regular SMA Female connector. This circulator is designed to withstand high peak power signals with relatively high duty cycles.
Datasheet: View File
Print
Product information
| Frequency (GHz) | Min: 1.288 Max: 1.402 |
|---|---|
| Loss Max (dB) | 0.3 |
| Isolation Min (dB) | 20 |

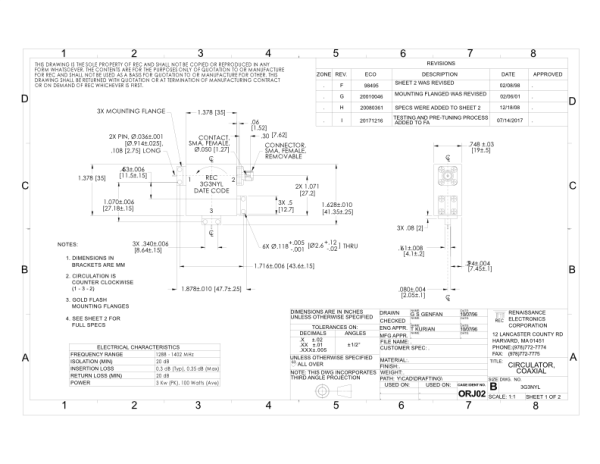

| Dimensions | 1.378 × 1.628 × .748 in |
