Designed for ground-based radar applications, Renaissance has designed a compact, low loss and high isolation, surface mount circulator that is mechanically robust and can withstand 15 watts forward and 10 watts reverse.
Datasheet: View File
Print
Product information
| Frequency (GHz) | Min: 8.2 Max: 8.6 |
|---|---|
| Loss Max (dB) | 0.5 |
| VSWR (dB) | 1.29:1 |
| Isolation Min (dB) | 18 |
| Temp Min (°C) | 0 |
| Temp Max (°C) | 85 |

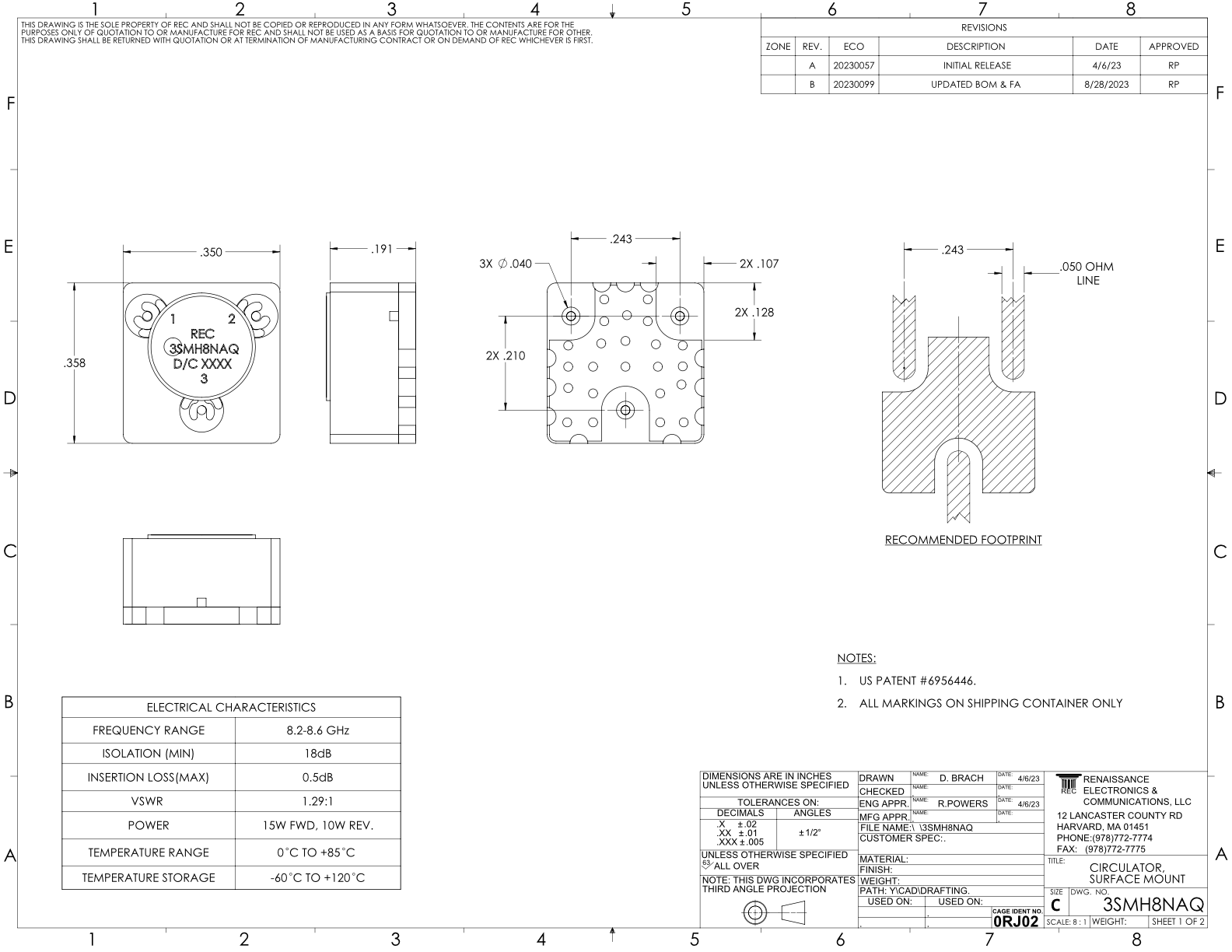

| Dimensions | .350 × .358 × .191 in |
