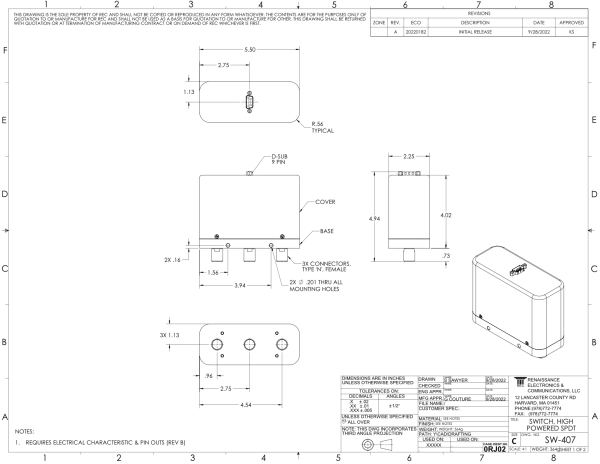

Designed to withstand 10kW at 30 MHz, this new SPDT switch designed by Renaissance is housed within 5.5” x 4” x 2.25” profile and can stay latched in either state (port 1 or 2) besides an open position.
This switch can be used with high power HF transmitters to multiplex antennas.
Datasheet: View File
Print
Product information
| Frequency (GHz) | Min: 1 Max: 1 |
|---|---|
| Loss Max (dB) | < 0.2 |
| VSWR (dB) | 1.2:1 |
| Isolation Min (dB) | > 80 |
| Temp Min (°C) | -40 |
| Temp Max (°C) | 80 |
| Dimensions | 5.5 × 4 × 2.25 in |
